TAM.UNO
PRIMO&VERTO

ONE FORM. TWO WORLDS.

ENDLESS ANGLE

Born from a simple yet provocative question. What if privacy didn’t have to come in a box, or even resemble one.

Tam.Uno is a single-person acoustic pod defined by its distinctive trapezium geometry. Its dual-orientation design reimagines how spatial form influences posture, mindset, and activity, supporting a range of working modes from focused concentration to creative exploration.

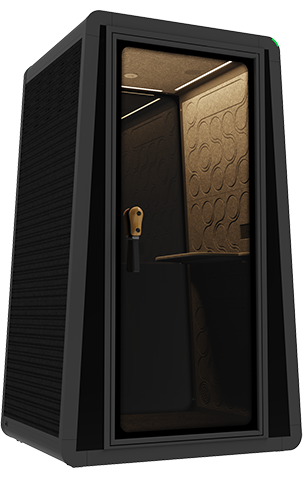

  • TAM.UNO PRIMO

    Tam.Uno Primo features an upright trapezium form. With forward-leaning panels, the design subtly guides the body and gaze inward, creating a natural focal point that supports deep concentration and focused work.

  • TAM.UNO VERTO

    Tam.Uno Verto is defined by an inverted trapezium form. Backward-leaning panels gently lift the body and gaze upward, fostering a sense of openness and lightness—ideal for creative flow and quiet ideation.

THE STANDARD COLOURWAY

SPECIFICATIONS

VENTILATION

Maximum airflow:
33l/s 70CFM 119m³/h

Default airflow:

25l/s 53CFM 90m³/h

LIGHTING

Ceiling Lighting:
Adjustable Four-sided integrated LED bar lights with a colour temperature of 3500K (neutral white).

Occupancy Light:
Equipped with mm-wave radar sensing technology, providing a clear and instant visual indication of whether the pod is occupied or available.

EXTERNAL DIMENSIONS

240.7 × 139.0 × 118.9 cm / 94.8 × 54.7 × 46.8 in (H × W × D)

Standard adjustable feet:
Allow for level adjustment to suit different floor conditions.

INTERNAL DIMENSIONS

Tam.Uno Primo:
211.8 × 106.5 × 121.6 cm / 83.39 × 41.93 × 47.87 in (H × W × D)

Tam.Uno Verto:
211.8 × 106.5 × 99.5 cm / 83.39 × 41.93 × 39.7 in (H × W × D)

Doorway Dimensions:
206.9 × 85 cm / 81.4 × 33.5 in (H × W)

Weight:
250–400 kg / 551–882 lb

Threshold Height:
11.2 cm / 4.4 in

Door Swing Angle:
90°

Standard Footprint:
1.65 m²

Overall Depth (from back to front of doorway):
199.6 cm / 78.6 in

Minimum Room Height Requirement:
260 cm / 102.3 in

FURNITURE DIMENSIONS - TAM.UNO

Standard Desk Size:
102.9 × 40 × 100 cm / 40.5 × 15.7 × 39.3 in (W × D × H)

Desk Max Load:
15KG

Standard Chair Size (2 Pcs):
43.5 × 43 × 86 cm / 17.1 × 16.9 × 33.9 in (W × D × H)

Chair Max Load:
120 KG

EXTERIOR & STRUCTURE MATERIALS

Internal Panels: PVC Extrusion Panels
External Panels: Recyclable PET Felt
Frames: Matte Grey Aluminium Extrusions
Door frame: Matte Grey Aluminium Extrusions
Glass: Laminated Safety Glass (4 mm / 0.16 in + 4 mm / 0.16 in)
Base Structure: PVC Extrusion Panels and Fire-Retardant Board
Handle: Oak with Polyester Cotton Inlay and Stainless-Steel Clip

INTERIOR MATERIALS

Internal Finishing: Recyclable PET Felt
Carpet: High-performance nylon
Table: Multi-layer birch marine plywood with fire-rated laminate finish

SEATING MATERIALS

Seat: TEXA — sustainable bio-plastic derived from rice husk
Upholstery Fabric: Bio-plastic Soft Pack, Light Grey
Base: Steel with black powder-coated finish

FIRE SAFETY

No fire-hazardous materials are used in Nexus Modular pods. All surface finishes, upholstery, and acoustic materials undergo fire safety testing by our certified suppliers in the country of manufacture to ensure compliance with relevant safety standards.

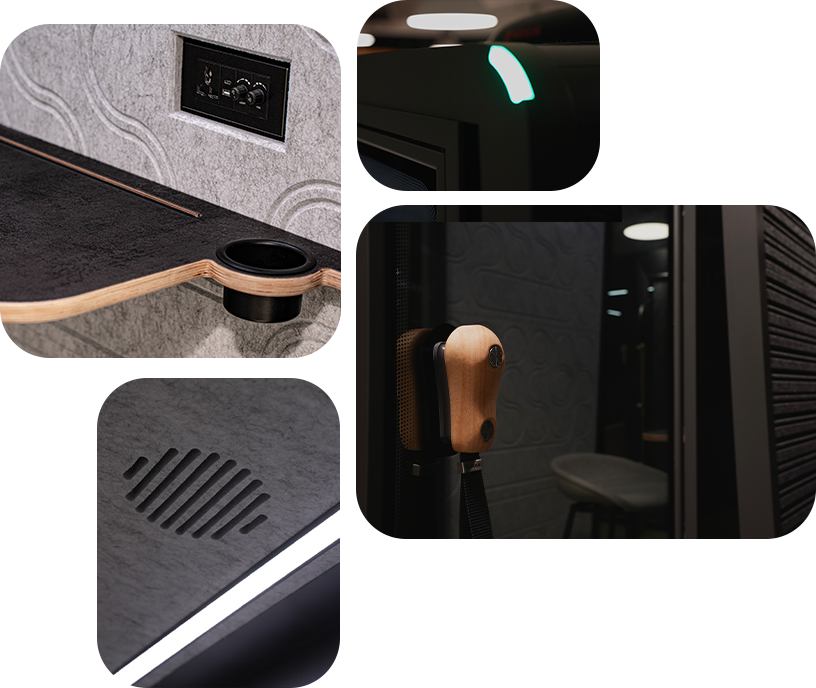

POWER

Outlets:
1 × wall-mounted universal power outlet with USB & Type-C PD charging ports
1x dimmer knob
1 x fan speed knob

SPECIFICATIONS

Universal power outlet: 110–250V, 16A
Dimmer & fan speed control: 220V, 15–300W
USB & Type-C: 18W
